Flat Tree design

Discussion in 'Mega, Mini, Spiral & Pixel Trees' started by drakky, Jan 25, 2018.

  1. drakky

    drakky Full Time Elf

    Joined:
    Dec 2, 2012
    Messages:
    303
    Likes Received:
    63
    Hi guys
    as I don't have much space I'm thinking of doing a Flat mega tree sort of mini version ie in the fact that it will only be about 2.1 metres high , all the threads seem to say base should be half of height , so my question is a 2.1 m high x about 1.1 m wide flat tree pixels spaced at 1" (boscoyo strip) 12 strands of 85 pixels on each , would that look ok to display text and images? or is it just plain too small?

  2. NTKing(Brad)

    NTKing(Brad) Full Time Elf

    Joined:
    Dec 28, 2016
    Messages:
    360
    Likes Received:
    125
    Location:
    Albany Creek
    Find Me On:
    Mine is 3mt high, 16 strands. I went for about a two inch spacing at the bottom, but then I just went by eye to get the spacing. I can measure up overall width if that helps you?

  3. OP
    OP
    drakky

    drakky Full Time Elf

    Joined:
    Dec 2, 2012
    Messages:
    303
    Likes Received:
    63
    looks good , thanks , I'm guessing it will be 800 roughly wide, but that might be a bit of an answer I can go to 16 strands same height but maybe 3" spacing at bottom
    might be better that will only be 8 universes or 1 receiver board

  4. OzAz

    OzAz Senior Elf Generous Elf

    Joined:
    Dec 29, 2015
    Messages:
    527
    Likes Received:
    155
    Location:
    Newcastle
    The 1 inch spacing will produce quite good graphics and text, but I'd extend to 16 strands if you can.
    my flat tree is 16 strands of 50 pixels at 2 inch spacing, about 2.4m tall, about 1.5m wide at base.

    see (badly taken) pic


    Attached Files:

  5. OP
    OP
    drakky

    drakky Full Time Elf

    Joined:
    Dec 2, 2012
    Messages:
    303
    Likes Received:
    63
    yeah I'm thinking 1" spacing down the strands and 3 inch spacing at the bottom between strips 8 universes 1 x 600w 12v supply should power it all

  6. roo

    roo Full Time Elf

    Joined:
    May 9, 2014
    Messages:
    148
    Likes Received:
    5
    Location:
    Bonnells Bay NSW
  7. OP
    OP
    drakky

    drakky Full Time Elf

    Joined:
    Dec 2, 2012
    Messages:
    303
    Likes Received:
    63
    what i'm interested is the spacing between the strips/strings at the top and the bottom

  8. NTKing(Brad)

    NTKing(Brad) Full Time Elf

    Joined:
    Dec 28, 2016
    Messages:
    360
    Likes Received:
    125
    Location:
    Albany Creek
    Find Me On:

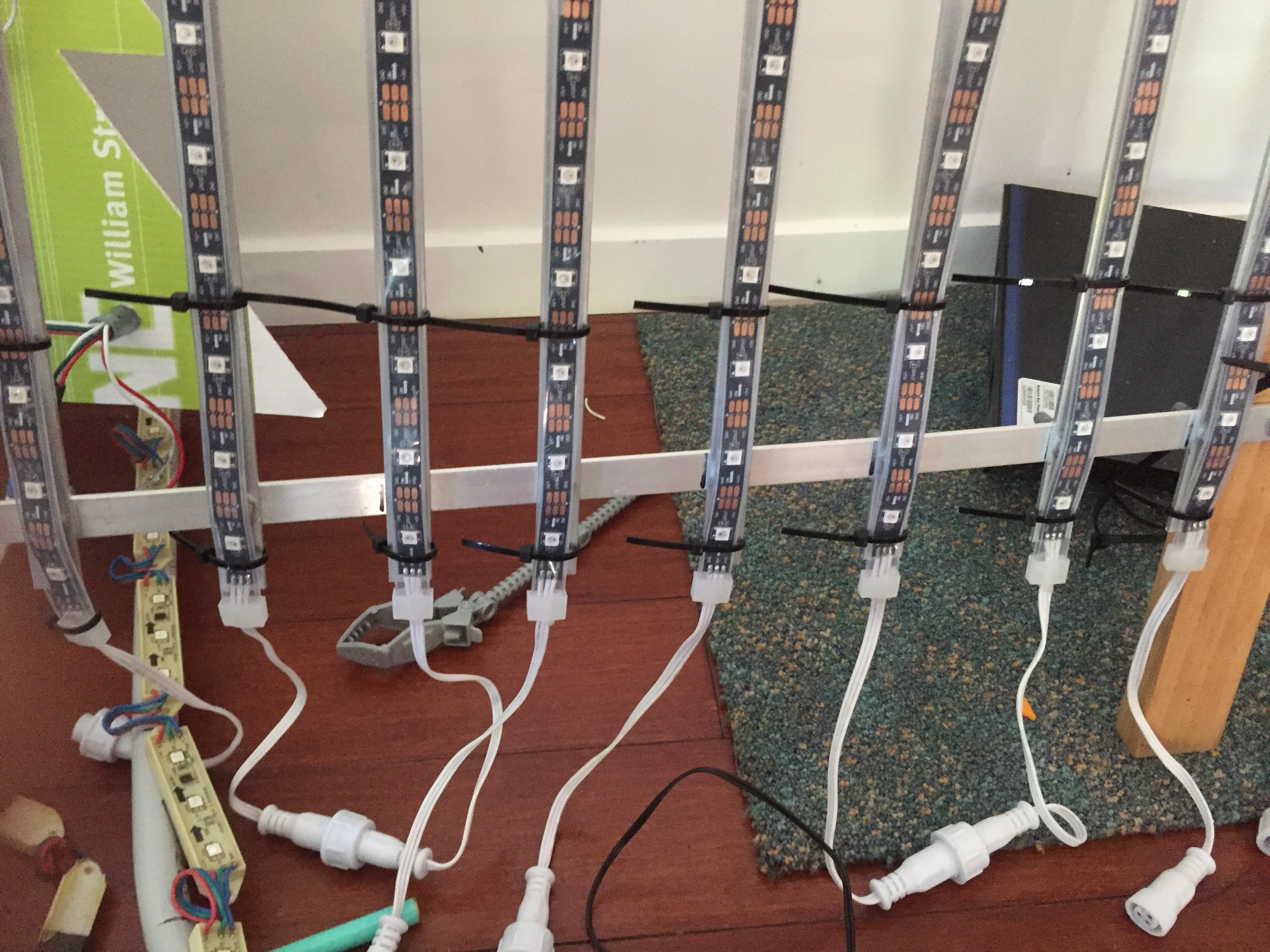

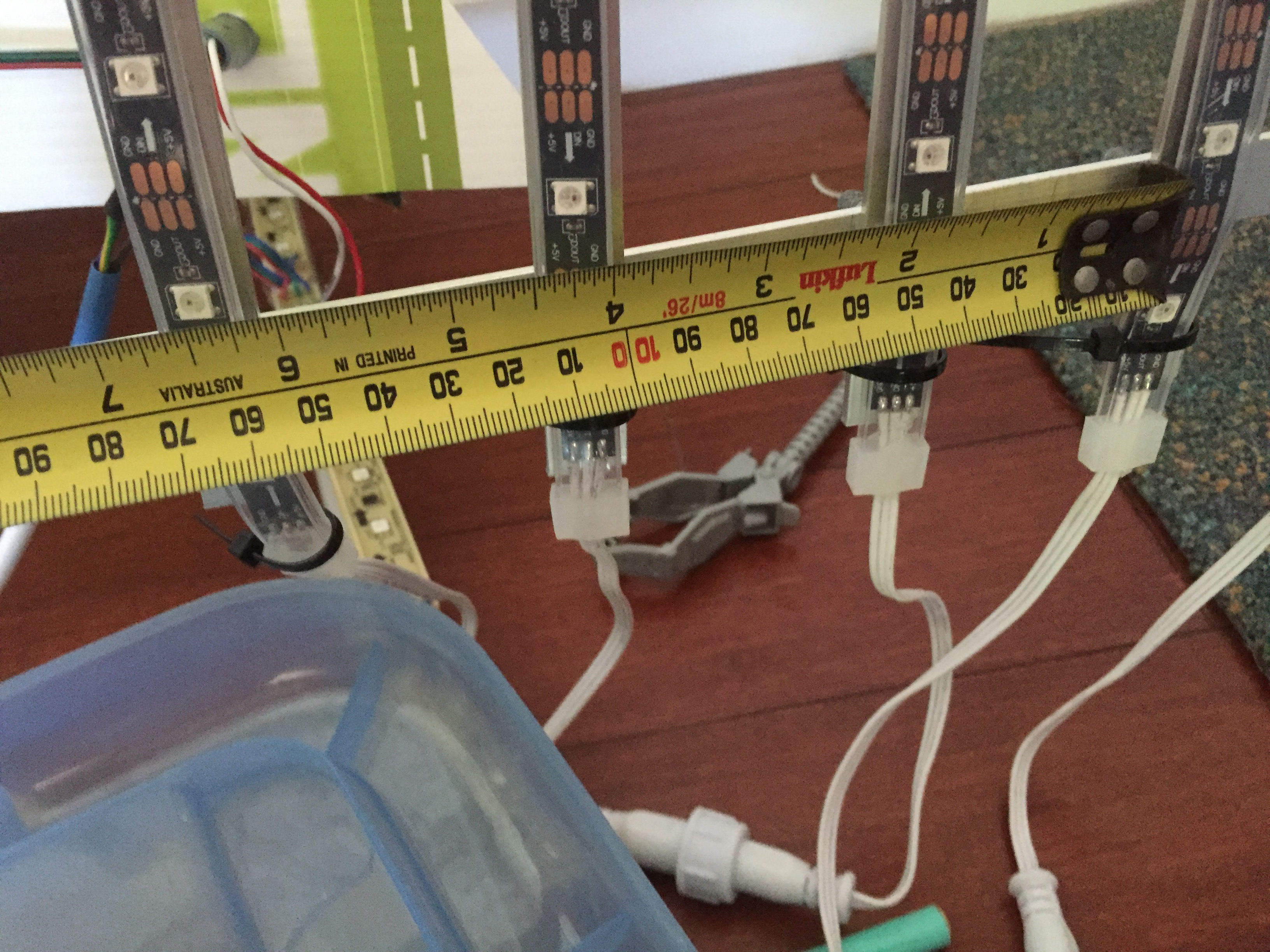

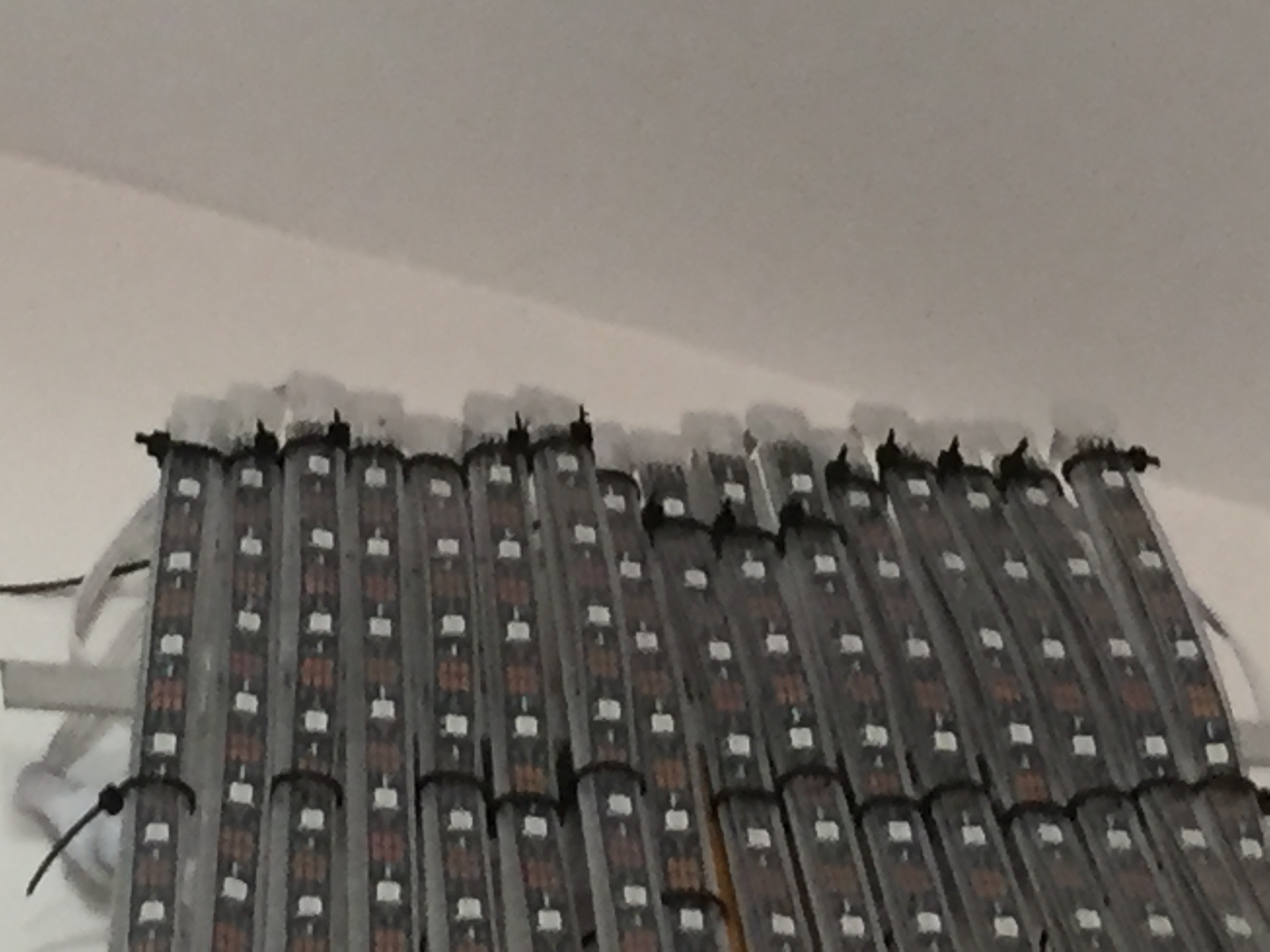

    At the top mine is almost touching, a few mm difference. At the base its around 40 to 45 to 50 mm gap.


    Dont worry too much if the gap at the bottom is out by mm at the bottom. The tree is generally viewed from a fair distance away and is not noticable. Lay your strip down on the cross posts and space them out by measure and eye. Then use a texta and mark where the hole is going to be. Dont rush it - measure twice drill once :)
    UPDATE: for those interested, this is the strip I used https://www.aliexpress.com/store/pr...xels-reverse-protection/701799_926778326.html
    Video of my tree

    View: https://youtu.be/E3P5hSarBEY?t=14m15s

    Last edited: May 5, 2018
  9. OP
    OP
    drakky

    drakky Full Time Elf

    Joined:
    Dec 2, 2012
    Messages:
    303
    Likes Received:
    63
    thanks Brad , not having done this before i only want to make this thing once hate doing things twice and I don't want a p10 panel or matrix as such so I'm hoping it will look good touching at the top would be 25mm then 50mm at the bottom with 25mm between nodes should be ok I think

    NTKing(Brad) likes this.
  10. OP
    OP
    drakky

    drakky Full Time Elf

    Joined:
    Dec 2, 2012
    Messages:
    303
    Likes Received:
    63
    Hi Oz you're using nodes rather than strip it looks like , how did you secure the strip at top and bottom? and did you line up the strip starting from the top or bottom?

  11. OzAz

    OzAz Senior Elf Generous Elf

    Joined:
    Dec 29, 2015
    Messages:
    527
    Likes Received:
    155
    Location:
    Newcastle
    nodes on boscoyo strip. lined up strips at top, strips looped over and then looped onto pipe, screw inserted thru one of the cable tie holes to keep in place
    bottom of strip looped over and held on using short bungee cords with bobble on end, different lengths/adjustments to take into account length changing as went further out
    probably the world's worst set up, but it mostly worked

  12. OP
    OP
    drakky

    drakky Full Time Elf

    Joined:
    Dec 2, 2012
    Messages:
    303
    Likes Received:
    63
    so there's a bit of a curve in the rows not straight across each line of nodes?

  13. OzAz

    OzAz Senior Elf Generous Elf

    Joined:
    Dec 29, 2015
    Messages:
    527
    Likes Received:
    155
    Location:
    Newcastle
    yes
    I also interwove some spare bits of boscoyo strip horizontally to try and maintain spacing

  14. OP
    OP
    drakky

    drakky Full Time Elf

    Joined:
    Dec 2, 2012
    Messages:
    303
    Likes Received:
    63
    i've used turnbuckles at the bottom it stretches the boscoyo strip enough to make them straight , i'm going to zip tie 4mm rod in 2 lines across the front and they should all face forwards and not turn and be pretty much dead straight in line
