3-2-3 T-type splitter wiring for power injection

Discussion in 'Power Supplies' started by cdjazman, Aug 19, 2017.

  1. cdjazman

    cdjazman Full Time Elf

    Joined:
    Apr 24, 2012
    Messages:
    243
    Likes Received:
    30
    Hello all,

    OK so having brain farts and confusing myself here.

    Just wanting to confirm wiring colors for power injection with Rays 3-2-3 to do straight power injection from power supplies.

    https://www.aliexpress.com/item/3-c...id=dd078ecc-b6cb-4342-b2b0-79336331f227&tpp=1

    Which is the positive?

    I am running power back to my central command and have 2 core coming from power supply to either straight to T-type or via F8 Distro board.

    I have my head around running blue to blue all the way through the setup but my concern is the T-type and should blue be positive from the start or negative?

    Or have i just confused the reader...... :):eek::confused::D

  2. burnt

    burnt New Elf

    Joined:
    Nov 17, 2014
    Messages:
    32
    Likes Received:
    5

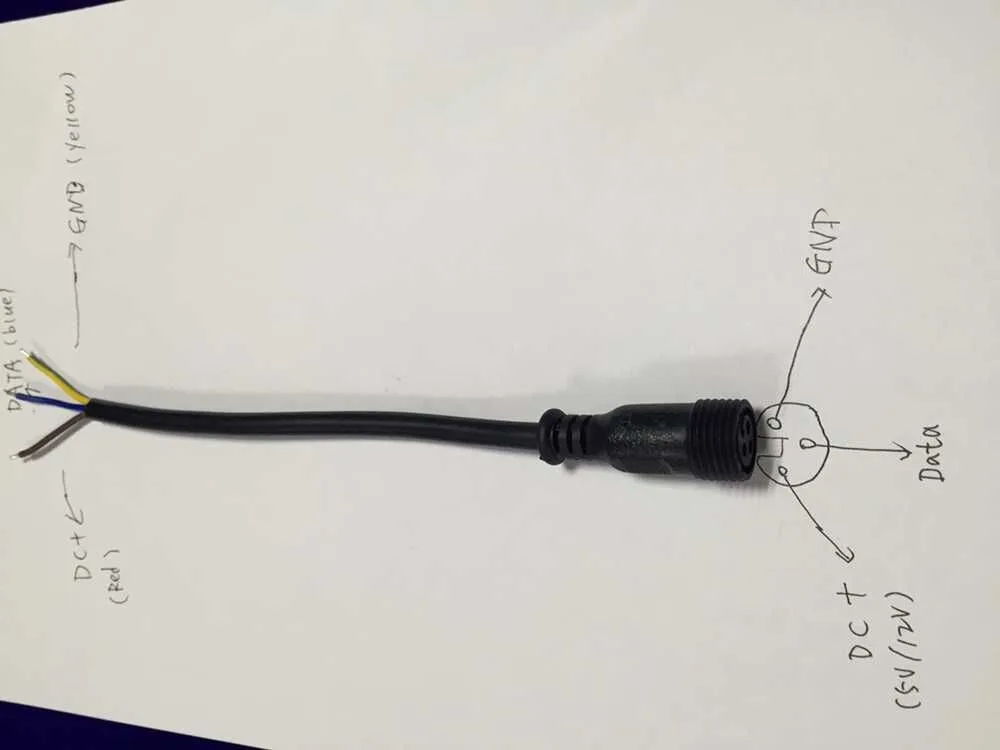

    [​IMG]

    from rays site.. does this help

  3. Fing

    Fing Full Time Elf Generous Elf

    Joined:
    Dec 31, 2014
    Messages:
    349
    Likes Received:
    29
    Location:
    Muswellbrook
    Find Me On:
    Blue is Negative
    Brown is Positive
    yellow/green data

  4. OP
    OP
    cdjazman

    cdjazman Full Time Elf

    Joined:
    Apr 24, 2012
    Messages:
    243
    Likes Received:
    30
    Not really no. This is for 3 core and I am using the T-type with 2 core power injection. Good spot though.

  5. burnt

    burnt New Elf

    Joined:
    Nov 17, 2014
    Messages:
    32
    Likes Received:
    5
    easy to workout with multi meter.. looking at the pic use the meter to check for circuit from +ve of the 3 pin plug to the 2 way t connector

  6. OP
    OP
    cdjazman

    cdjazman Full Time Elf

    Joined:
    Apr 24, 2012
    Messages:
    243
    Likes Received:
    30
    Ok so that raises the following;

    If I follow the Blue --> Blue and work backwards from lights back to power supply then the combination should be fine...?

    I would end up with a combination as such....

    Lights

    T-type splitter (Female end for 2 core)

    Male end -> cable -> Male end

    Female end -> F8 distro (Blue into GND side) -> Female end connected to F8 power

    Male end -> cable -> Male end

    Female end -> connected to power supply


    And there is my learn something new everyday moment. :):):):):)

  7. lytnin

    lytnin Apprentice Elf

    Joined:
    Jul 26, 2010
    Messages:
    88
    Likes Received:
    2
    Location:
    North Richmond NSW
    Always test with a multi-meter. I've had a few T-pieces with incorrect wiring, from the same batch.

    Test Test Test

    Boof63 likes this.
