ACL 3d printed bubble machines?

lets talk motors driving fan and or bubble head.. im thinking 755 motor
dc12 -24v
2050rpm - 4150rpm
under $20

burnt said:

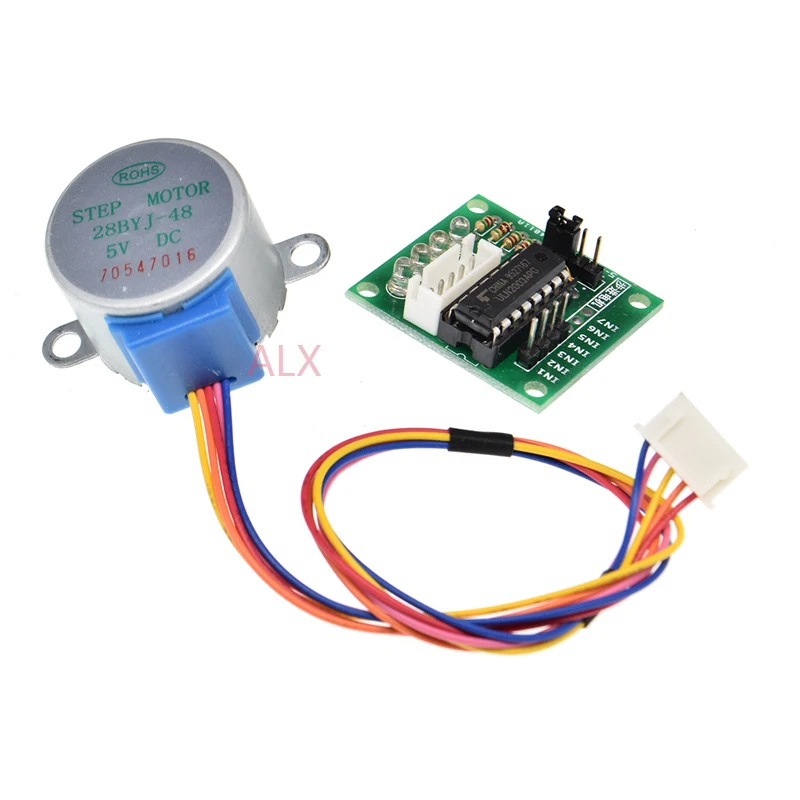

chep stepper motor 28BYJ-48 for about $3
www.aliexpress.com

28BYJ-48 5V DC stepper motor + ULN2003 stepper motor DRIVE MODULE BOARD FOR ARDUINO DIY KIT 28BYJ48 - AliExpress 13

Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com www.aliexpress.com
Click to expand...

Most likely the same thing, works well and has quite a bit of torque

Duinotech Arduino Compatible 5V Stepper Motor with Controller | Jaycar Electronics

A small and versatile motor and driver set. 5VDC stepper motor controlled by the ULN2003 driver can be used with any Arduino or compatible boards via jumper leads. Four-phase LED indicates the status of the stepper motor.
www.jaycar.com.au www.jaycar.com.au

Late to this post and been down this road previously.
I even printed enough components from https://www.thingiverse.com/thing:941759 the bubble bucket machine to know it is a good choice if you want to go down the DIY road.
but i just bit the dollar bullet and bought one similar to this https://djcity.com.au/product/chauvet-dj-b-550-bubble-machine/ without the Chauvet name :)
and has a remote control.
This one is DMX controlled... https://djcity.com.au/product/beamz-sb2000-led-smoke-bubble-machine/
Though currently listed out of stock.

Not sure how to integrate fans into a standalone type unit was working on a design that had 150mm fans ducted from the sides.

Cheers
Phil

Jarrad33 said:
These were massive at my display too. Happy to help with this project. I dont know how much help ill be ( still working on my 3D printer to get it working right)
Click to expand...
My kids loved your bubble machine, did you have the Beamz SB2000-LED ?

I have been playing around with some designs, Jarrad was kind enough to let me borrow his Hurricane as it had a different process on the bubble wand compared to the cheaper units most people pick up which seemed to allow for the protenital for better control/less wastage in possibly a smaller footprint.

On that end, I have ordered some motors/blowers/pumps and drawn up this basic design to do a trail on to see if its a feasible design to move forward with.

View: https://drive.google.com/file/d/1-YrJvoakIDVGdUX3nopfO29MV9Wd3aw_/view?usp=sharing


The Design should be able to fit into a footprint something like this, which is a 120(W)x150(L)x100(H)


View: https://drive.google.com/file/d/1-wo7FgzTcu1jRIjjdI5wDVHS3jEC64xP/view?usp=sharing



View: https://drive.google.com/file/d/1-zIum2uXDAu7X-qdYuzoZgJMYit_HLUx/view?usp=sharing



View: https://drive.google.com/file/d/1-zvHWb6czRdq16lw14e_s6ftG40iZSc7/view?usp=sharing



View: https://drive.google.com/file/d/1-nj0w9GQ9s3D8LUnMMkMmdKTicv_X_th/view?usp=sharing


All of he components i've orderd so far are 5vdc units so if they all end up being suitable the build may be able to be run off usb level power.

I need to order some HDPE to do some test cuts and work out controllers etc but for now I should just be able to power everything up to test.

BooY said:
I have been playing around with some designs, Jarrad was kind enough to let me borrow his Hurricane as it had a different process on the bubble wand compared to the cheaper units most people pick up which seemed to allow for the protenital for better control/less wastage in possibly a smaller footprint.
Click to expand...
Totally unrelated to this project but what did you draw everything up with and animate with?

@AAH Yeh Mark is correct i have a Fusion 360 subscription for my business, the animations are just a screen grab of the joint movement. It makes is easier to visualise how everything should connect and if there will be any movment issues with the models.

I can also use it to export CAM files to be able to machine up.
