Answered Can't get ray wu lights to work

Discussion in '101 Display Basics' started by Chris, Dec 9, 2017.

  1. Chris

    Chris New Elf

    Joined:
    Nov 12, 2017
    Messages:
    4
    Likes Received:
    1
    hi all, I am trying to finalize my setup for install, just got my shipment of icicle lights and strip lights from Ray ws2811 12v and I can't get them to light up. I have some other strip and bullet pixels from another company and they are working just fine. When I plug the ray wu lights in using the pigtails only the first pixel lights and it is extremely faint at that. I believe I have the wire colors correct, yellow for ground, blue data, brown power, what am I doing wrong?! Any suggestions?

    I am very new at this so maybe I am missing something easy, I just don't understand how it could be every strand of icicles and every strip... the only constant is me!

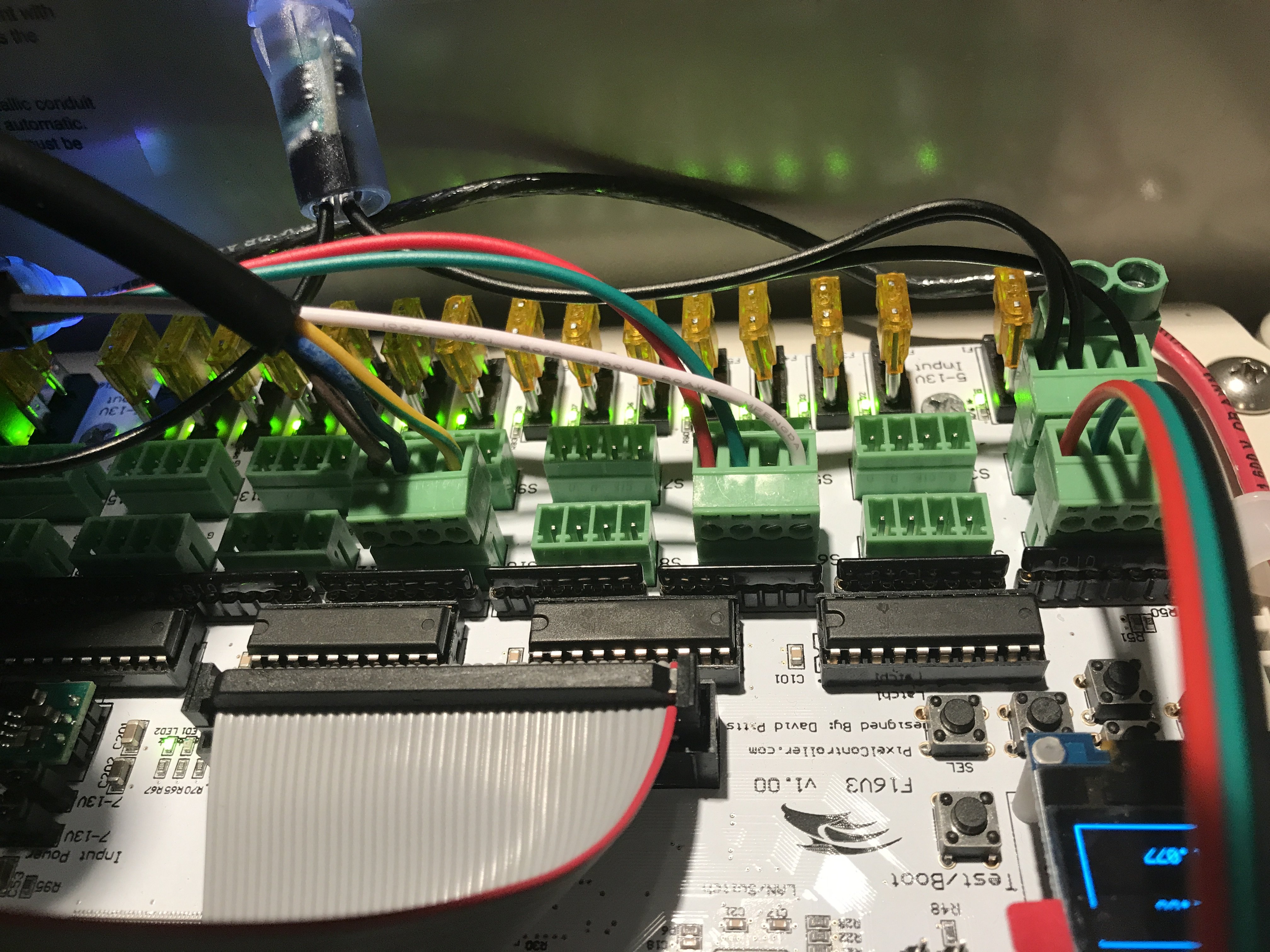

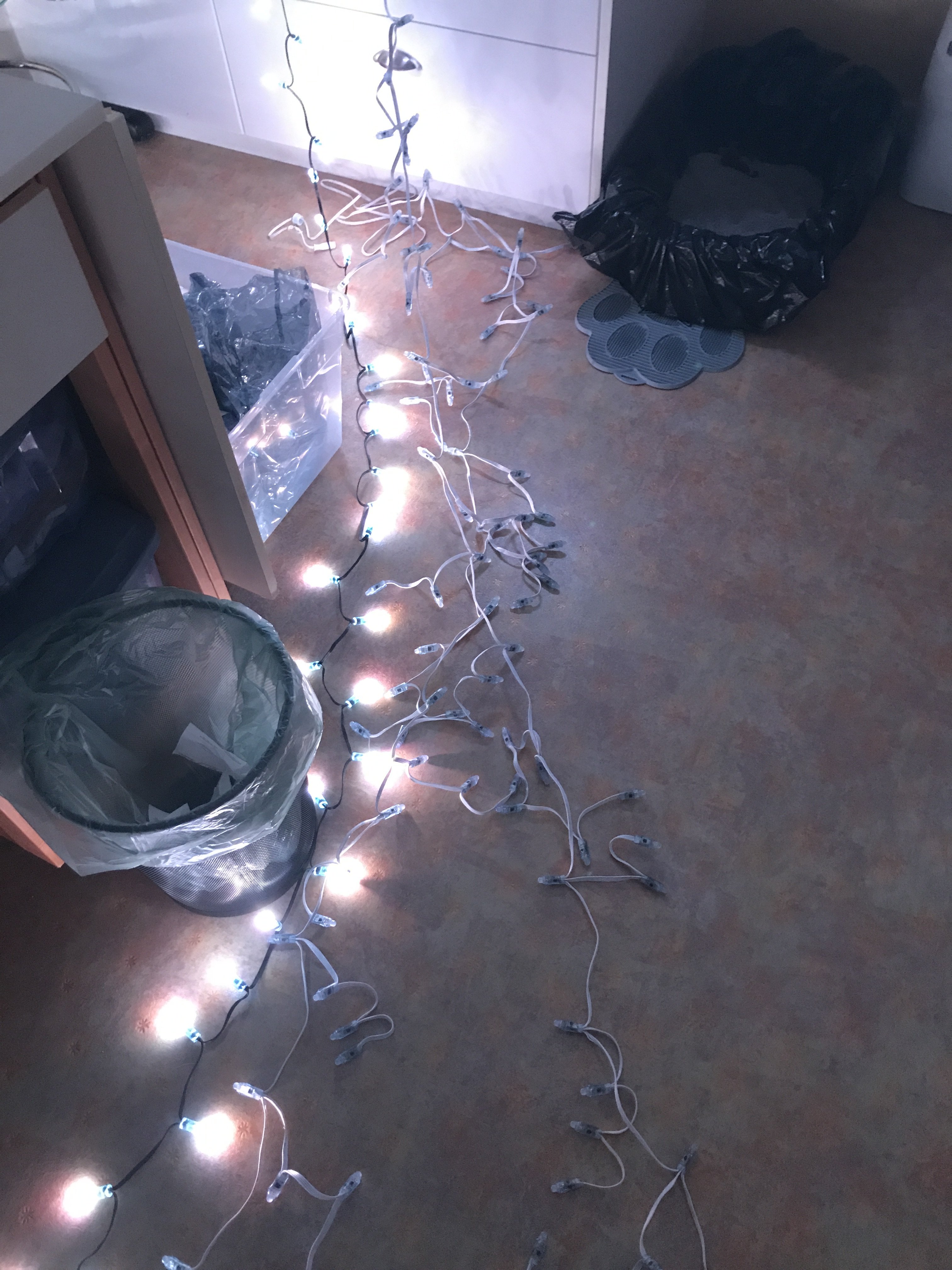

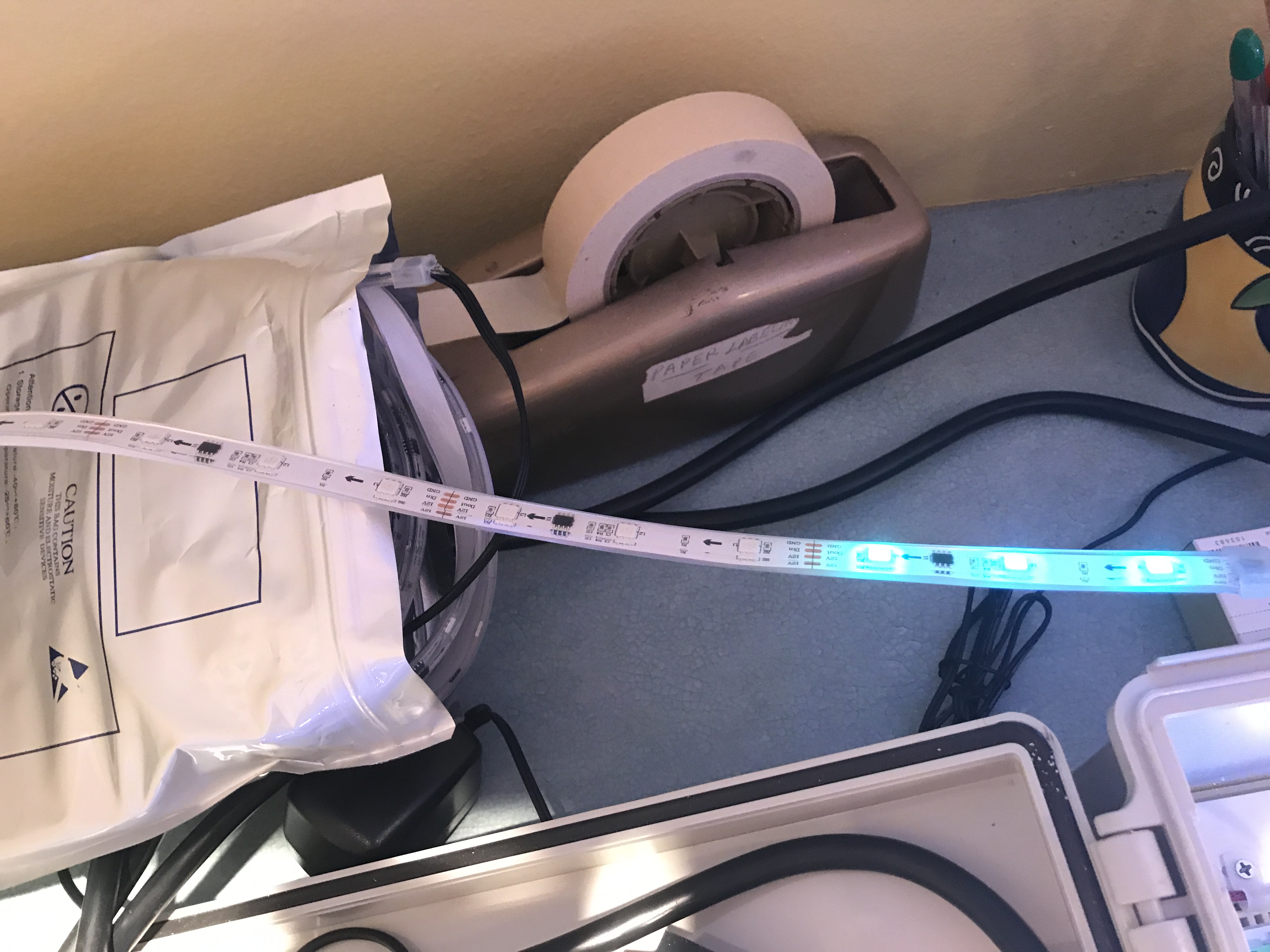

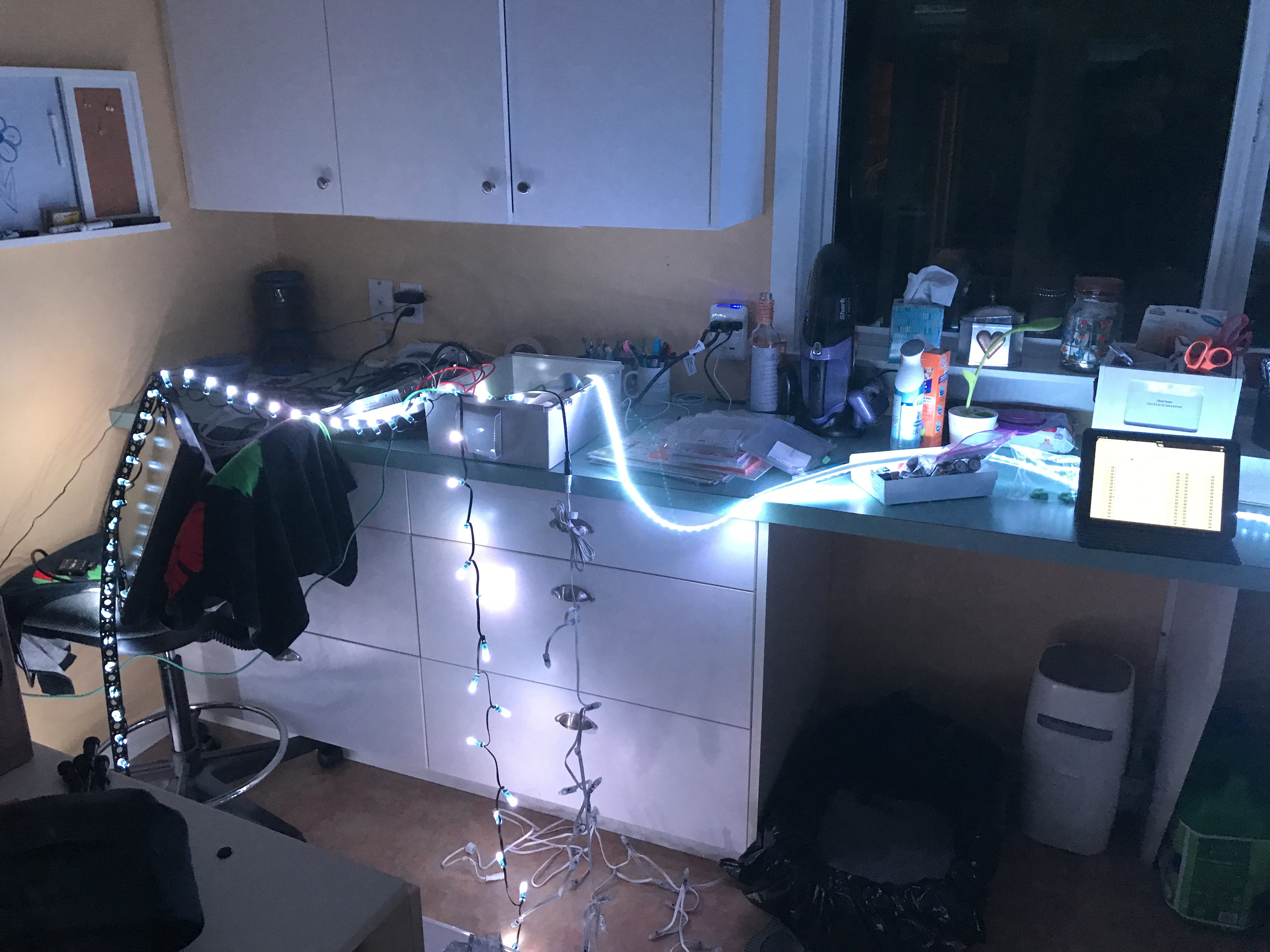

    Here are pics to show my current setup, excuse the mess, I have been ripping things apart trying to find the problem.


    Last edited: Dec 9, 2017
  2. keithsw1111

    keithsw1111 Full Time Elf

    Joined:
    Oct 11, 2012
    Messages:
    385
    Likes Received:
    59
    Location:
    Kellyville, NSW
    Find Me On:
    I reckon your ground and data are mixed up.

  3. AAH

    AAH I love blinky lights :) Community Project Designer Generous Elf

    Joined:
    Dec 27, 2010
    Messages:
    2,854
    Likes Received:
    162
    Location:
    Eaglehawk
    Find Me On:
    You'll need to confirm that the pigtails are connected as you think they are. Power off the F16 and meter from the board to the far end of the strip to check continuity for the 0V and 12 back to the matching pins on the F16. Pigtails aren't all the same wiring from batch to batch or even across the same batch.

  4. swb

    swb Full Time Elf

    Joined:
    Dec 31, 2016
    Messages:
    119
    Likes Received:
    27
    Location:
    Narangba
    If that black pigtail in the first photo is the lights you have a problem with, I am with Keith. The green wire is connected to -ve and the blue to data...

  5. OP
    OP
    Chris

    Chris New Elf

    Joined:
    Nov 12, 2017
    Messages:
    4
    Likes Received:
    1
    That was exactly it, thank you to everybody for the quick reply. Swapped the yellow and blue and we are working! Looks like install tomorrow is a go!
