    Hello all,


    Well I have decided to start this thread to document my build thread on my display for the year..


    Bit of an intro.. Always been keen on my chrissy lights but about 3 seasons (years) ago went to a computer controlled system using store bought lights, followed by music based in the following year using Vixen 2 outputting serial RS232 to my control system.. While this was ok it left me wanting, and I kept seeing these awesome displays on facebook and online and was really keen.. Well after about 1.5 years of talking about it the lovely better half said just to do it but dont spend more than x$.. (Budget figure not shown on purpose).. Needless to say the next day i was jumping head on into pixel land, which is where I came across this forums about 5 weeks ago and here we are..

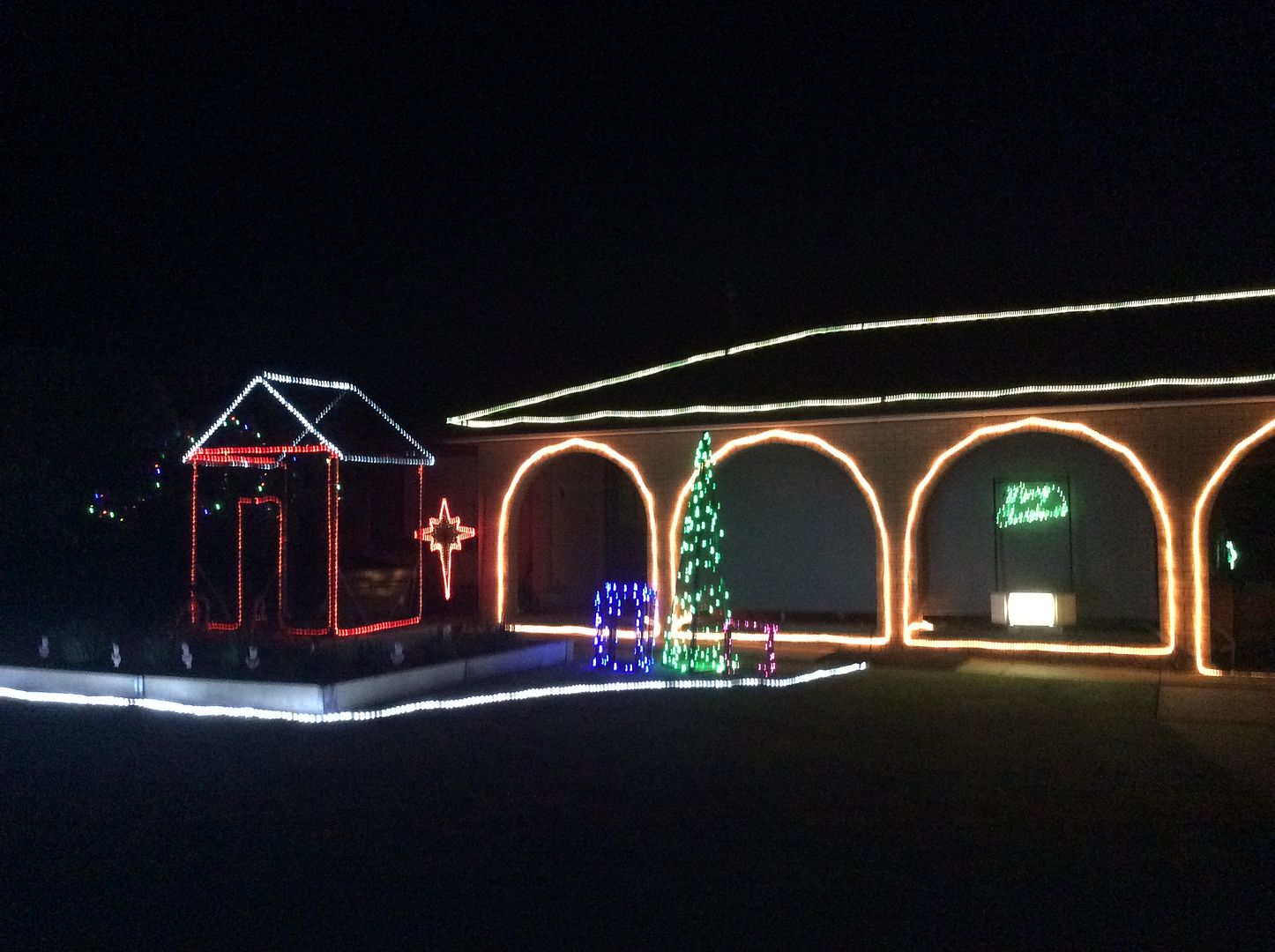

    So a quick pic of my old setup, which will be being scrapped completely in preparation for pixels..
    [​IMG]


    And so with the assistance of the people on ACL and the heaps of threads full of info, i started on planning my setup using others displays for inspiration but wanting to put in my own flair..


    [​IMG]


    I decide to move away from Vixen 2 and start down the Xlights path so started playing with the sw and sequencing to see what i could come up with, being more technical than artistic.. Hahaha little basic video sequence below..


    [​IMG]


    I was pretty happy with what could be achieved with xlights so next came time to make some decisions on the hardware..


    I decided to utilise Ray Wu on Aliexpress for lights as other members had lots of positive things to say.. I made up a wish list but then decided to split the order into 2 or possibly 3 orders..


    My initial order with Ray Wu was:
    26x 5m 30/10 Pixel Strip WS2811 12VDC
    3x 10m 10/10 Pixel Nodes WS2811 12VDC
    2x WS2811 Basic Controller/Tester 12VDC
    2x MeanWell 12VDC 350W Power Supplies
    1x Freight


    Which I recieved yesterday, 2 weeks after order, which was realistically pretty good.. Twas a very exciting day!!!


    [​IMG]


    And what was in the box?
    [​IMG]




    While awaiting the Ray Wu order, I made the decision on controller.. I decided to go with a Falcon F16V2 (put on order with darylc) as the main house controller, and then also decided on a J1SYS P2 (Put on order with BensChristmasLights) for the 'mega tree'.. The Falcon is still a bit off but I did have a package arrive from Ben yesterday.. Lets just say yesterday I was like a kid at christmas.. Hehehe


    [​IMG]


    So next step was to pull out the Ray Wu order and begin testing all the lights.. After a couple of small little hiccups, namely the connectors on the lights I was away, bench testing pixels, although once I had the first connected I was in awe of their awesomeness, and even the GF was impressed.. So utilising my bench psu I started uncoiling each of the strips, plugging them in, running them through a series of sequences off the ray wu controller and looking for any abnormalities which may indicate a fault.. I was pretty impressed, out of 26x rolls of the stuff i had 1 completely dead pixel, and 1 coil which malfunctions and obviously has a fault of some sort.. See video below..


    [​IMG]


    Next was on to testing the nodes.. I hooked them up, but as i started testing i started noticing a issue on full white where some pixels where red instead of white, pic below:


    [​IMG]


    Now remember I had been at it a while, so I was a little frustrated when this occured, so i packed those nodes up in a huff and tried the next lot.. I found a similar thing happening.. o_O So I sat and had a think and noticed the affected pixels were the further ones from the psu and controller.. Bumbum my first power injection issue.. I connected the power from the other end of the nodes onto the psu and bam problem fixed, well mostly, ;-).. I then thoroughly began testing the nodes and found occasionally on full white 1 or 2 pixels where still playing up.. This had me scratching my head, until i had a lightbulb moment and realised perhaps my psu wasnt up to task as its just a little multi voltage unit that can only supply 3amps at 12vdc.. I decided to give up for the night and to wait for the next day to wire up the one of the meanwell psus for final testing..


    Problem was fully fixed when using the meanwell psu..


    [​IMG]


    So was pretty happy then out of all my ray wu order only a few little issues..


    I was also pretty impressed with how the lights work, both in brightness and function.. Little video of the strip running beside the nodes.. Both are very cool in their own ways..


    [​IMG]


    Anyways so that kinda gets me and my preparation for chrissy lights 2016 up to date.. As I experiment with ideas and develop the display I will update this thread incase it may be able to help anyone else out there..


    Whats coming in the future? Well modify my kmart stars to put nodes in them.. Possibly construct the roof matrix and have a play with the P2 driving it.. Experiment around with some different mini tree styles.. Construct the mega tree.. Another ray wu order.. Rasberry Pi.. Interactivity of some sort for visitors.. Make and decorate some seasonal elements.. And some other stuffs as we go no doubts!


    Cheers,
    Nik

  2. DavidJ247

    DavidJ247 Full Time Elf

    Joined:
    Dec 2, 2015
    Messages:
    146
    Likes Received:
    10
    Location:
    Narre Warren
    Find Me On:
    Watching with interest Nik, thanks for sharing.
    I have a few similar projects in mind myself and placed my first order with Ray Wu today.

  3. OP
    OP
    Roosta

    Roosta Full Time Elf

    Joined:
    Dec 8, 2015
    Messages:
    137
    Likes Received:
    11
    Thanks DavidJ.. I do hope others get something out of it to..


    Converted a kmart star to pixels this evening.. Pretty simple to remove the original supplied battery led strip, drill out the holes a big bigger, 11.5mm was pretty much spot on, nice and tight, 12mm was a little sloppy.. Clipped the leds on with a little twisting.. Powered it up and happy with the results!


    Pic
    [​IMG]




    Video:
    [​IMG]


    Cheers,
    Nik

  4. Seemylights

    Seemylights New Elf

    Joined:
    Jan 16, 2016
    Messages:
    11
    Likes Received:
    0
    Location:
    Woodend
    Thank you for this, as a complete novice I have been in overloaad mode on how to get started

    I know what I want to do but just trying to get my head around how to do what I want

    Time to plan out my pixel runs for the house outline then work out my power requirements

    get that to work then move on to my props

  5. OP
    OP
    Roosta

    Roosta Full Time Elf

    Joined:
    Dec 8, 2015
    Messages:
    137
    Likes Received:
    11
    Hey seemylights, glad you found it useful mate, that was part of my intention..


    Yes planning is quite important to a point but sometimes u need to just jump in to properly get you head around things.. :)

  6. fasteddy

    fasteddy I have C.L.A.P Global Moderator Generous Elf

    Joined:
    Apr 26, 2010
    Messages:
    6,471
    Likes Received:
    16
    Location:
    Albion Park NSW
    Find Me On:
    Thanks for taking the time to put this up so others can share in your experiences and wisdom

  7. scamper

    scamper Senior Elf

    Joined:
    Jan 5, 2014
    Messages:
    738
    Likes Received:
    41
    Location:
    collie
    Find Me On:
    Couldn't agree more. I was the same, I read everything I could but when you actually start playing with the items it all starts to make sense.
    Start with the basic necessities order it early and start playing.

  8. OP
    OP
    Roosta

    Roosta Full Time Elf

    Joined:
    Dec 8, 2015
    Messages:
    137
    Likes Received:
    11
    Well a small update, received my next (and probably last for this year) Ray Wu order today.. Arrived much faster than the last order, so was a nice surprise at work!


    In the box was
    27x 5m 30/10 pixel strip ws2811 12vdc
    1x 10m 10/10 pixel nodes ws2811 12vdc
    25x male 3 pin plugs
    25x female 3 pin sockets
    5x male 2 pin plugs
    5x female 2 pin plugs
    80m of silicon strip tubing
    200x silicon strip end caps
    10x 12vdc 250w power supplies
    1x All in 1 pixel strip, psu and remote controller


    [​IMG]


    [​IMG]


    Also got a few bits of hardware for testing, conduits, steel, aluminium.. Lots of busy evenings and weekends ahead..


    Just waiting on the Falcon now.. ;-)



  9. OzAz

    OzAz Full Time Elf

    Joined:
    Dec 29, 2015
    Messages:
    296
    Likes Received:
    27
    Location:
    Newcastle
    Roosta, do you have the link for the All in 1 pixel strip, psu and remote controller?

  10. OP
    OP
    Roosta

    Roosta Full Time Elf

    Joined:
    Dec 8, 2015
    Messages:
    137
    Likes Received:
    11
  11. OzAz

    OzAz Full Time Elf

    Joined:
    Dec 29, 2015
    Messages:
    296
    Likes Received:
    27
    Location:
    Newcastle
    Cheers
    Was thinking of around my island kitchen bench. There's a recessed gap between bench top and cabinet just a bit wider than led strip.

  12. OP
    OP
    Roosta

    Roosta Full Time Elf

    Joined:
    Dec 8, 2015
    Messages:
    137
    Likes Received:
    11
    Well been a bit quiet on the blinky front of late, for 2 reasons.. Very busy with reno's around the house and thinking i might wait till after the mini to start on elements...


    However recieving some more pieces of the puzzle yesterday and today..
    My main show controller is the falcon16v2, thanks darylc, and the show player will be a rasberry pi2 and associated bits.. :) looking forward to tinkering..


    [​IMG]


    Cheers,
    Nik

  13. scamper

    scamper Senior Elf

    Joined:
    Jan 5, 2014
    Messages:
    738
    Likes Received:
    41
    Location:
    collie
    Find Me On:
    Nice work there.
    I use a very similar setup, One thing is the power supply you have there, just make sure it is rated high enough, the Pi2 needs 2amps. I personally bought a 4 way power board with a usb supply built in as I also had 3 power supplies in the same box.

    One question.... What is the lego block you have there?

  14. roo

    roo Full Time Elf

    Joined:
    May 9, 2014
    Messages:
    136
    Likes Received:
    0
    Location:
    Lake Haven NSW
    Was thinking the same thing? You going back to your childhood?

  15. OP
    OP
    Roosta

    Roosta Full Time Elf

    Joined:
    Dec 8, 2015
    Messages:
    137
    Likes Received:
    11
    Yep, powersupply has plenty of juice at 2.5amps.. :)


    Haha 'lego' block is the case for the Pi2.. Saw it n liked it and needed a case for the pi2 anyways hahaha..
