Bunnings enclosure - Ezy Storage Waterproof IP67 Storage Box - 18L

cdjazman

Full time elf
Joined
Apr 24, 2012
Messages
396
I wonder if the clear plastic tubs will be ok and not degrade too fast (become brittle) with the UV from the sun.
As said supposed to be UV resistant. Will not be in direct sun for me so should not have a problem.


Attachments

  • 20210612_141602.jpg
    515.4 KB · Views: 16
  • 20210612_141552.jpg
    580.7 KB · Views: 17

cdjazman

Full time elf
Joined
Apr 24, 2012
Messages
396
Nice!
I’m using the same box but the slightly bigger 32L model.

I went the bigger box because I’ve gone horizontal rather than vertical with my boards and power.
John,

Do you have any pics of the bigger box. Need another and thinking the horizontal might be better.


darylc

404 darylc not found
Joined
Dec 8, 2012
Messages
984

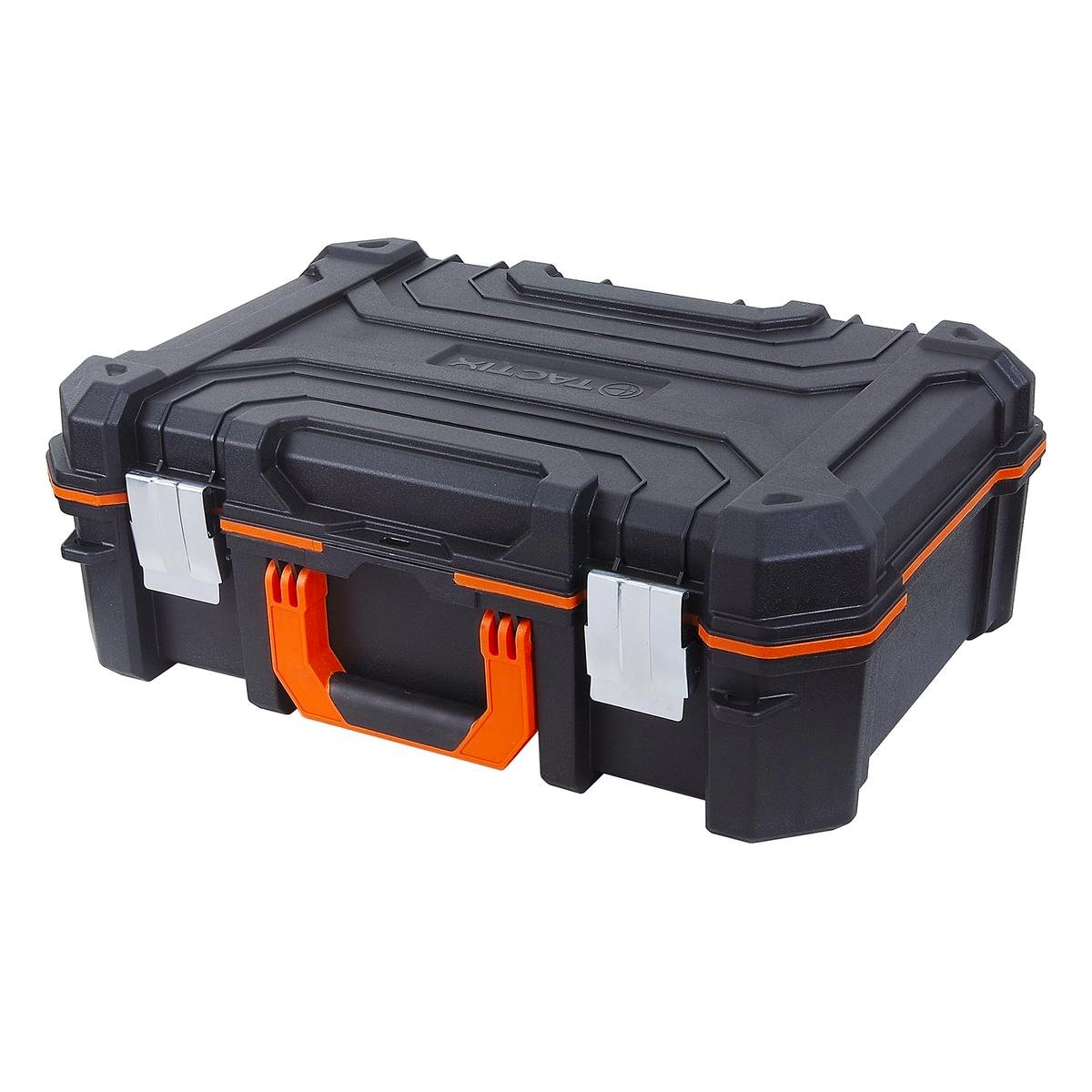

Ill be using one of these for my show. Have a lot of room which is good. Tactix box
Also got a couple of the smaller ones for my fm transmitter and the outdoor speaker.Tactix Box

All i did for added protection was i added a weather strip between the lid and box even though the lid wraps around the box. weather strip
View attachment 17738
I love these boxes for controllers at the moment, you can get them in 4 or 5 different sizes too


Iain

Apprentice elf
Joined
Nov 13, 2018
Messages
64
Location
Darwin
This one looks interesting, good for packing away and carrying afterward too!


Conrad

New elf
Joined
Nov 17, 2021
Messages
11
Anaconda also have these although it doesnt state on the website what water resistant rating they are



Withdr4wn

New elf
Generous elf
Joined
Aug 5, 2021
Messages
2
I picked up one of the 32L ones a few months ago to use for the "main" box but trying to find them locally wasn't easy. This ended up sitting under the Verandah so I wasn't worried about water ingress - but I will say the material is pretty thin and I ended up splitting (hairline fracture) in a couple of spots. You can kind of see it in "box_3.JPG" on the right hand glands. Otherwise, there was plenty of room to put in 3 x Power Supplies and 3 x Raspberry Pi's, Power Distribution Boards, Mini Switch and a couple of fans. I definitely wouldn't be game to spray it with the hose though... but the box is still in good shape.


Attachments

  • box_1.jpg
    147.2 KB · Views: 28
  • box_2.JPG
    127.2 KB · Views: 29
  • box_3.JPG
    180.5 KB · Views: 29
  • box_4.JPG
    129.3 KB · Views: 28

Withdr4wn

New elf
Generous elf
Joined
Aug 5, 2021
Messages
2
Nice @withdrawn, what did you use for the shelves and legs?
Those are 3D Printed - I'd put together a design in SketchUp for the legs and the top plate. The Raspberry Pi's have an Armour case on them (I had them for an entirely different project, so didn't want to go around disassembling them), so no where to screw them in - so those had some clips in the design to hold them to the board. The distribution boards were far easier - some brass heat-set inserts in the plastic and they screw in fine. I'm pretty sure I used 3M tape to hold them to the base... They held up fine in their respective boxes (the third one ended up on the roof in one of those outdoor ABS boxes).


Attachments

  • top-plates.jpg
    274 KB · Views: 15
  • 3d leg.png
    3d leg.png
    19.6 KB · Views: 15
  • plates.png
    69.2 KB · Views: 15
